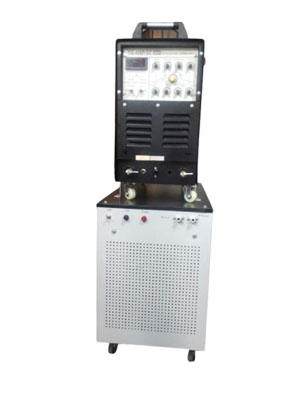

Tig 400 P/dc Analog 9 Pot Welding Machine
By Hyunald Electric Weld – Leading Manufacturer & Supplier of
Analog TIG 400 P/DC 9 Pot Welding Machine
Category: Analog DC/TIG Welding Machine
The TIG 400P/DC ANALOG 9 POT WELDING MACHINE by Hyunald Electric Weld is a precision-engineered analog TIG welding solution designed for professionals who require high control, performance, and durability in industrial welding applications.
Equipped with 9 potentiometer-based analog controls, this TIG welder allows fine-tuned adjustments for pulse welding parameters including base current, peak current, pulse frequency, and more. Built on advanced IGBT inverter technology, it ensures stable arc performance, low spatter, and clean welds, making it ideal for stainless steel, carbon steel, and other non-ferrous metals.
Features & Benefits :
- 9 Potentiometer Analog Controls - Full-range adjustment for TIG pulse welding including up-slope, down-slope, pre/post gas, and pulse settings.
- IGBT Inverter Technology – Ensures high efficiency, energy savings, and consistent performance in industrial environments.
- Stable Arc with Low Spatter - Smooth arc start and excellent arc stability for superior quality welds.
- Pulse TIG Functionality - Allows precise heat control and minimizes distortion on thin materials.
- Heavy-Duty Output - 400Amps - Designed to handle high-current welding jobs in demanding sectors.
- Overload & Thermal Protection -In-built safeguards extend machine life and enhance operator safety.
- Compatible with 2T/4T Torch Operation - Flexible operation modes for ease of welding.
- Air-Cooled System - Efficient thermal management for long working cycles.
Industrial Applications -
- Stainless Steel Welding
- Pipe & Pressure Vessel Welding
- Food & Pharma Equipment Fabrication
- Precision Sheet Metal Welding
- Tool & Die Manufacturing
- Aerospace & Rail Welding Jobs
Technical Specifications -
| Model | TIG 400P / DC ANALOG 9 POT |
| Category | Analog DC/ TIG Welding Machine |
| Welding Type | DC TIG / MMA (Stick) |
| Input Voltage | 415V ±10%, 3 Phase, 50/60Hz |
| Output Current Range | 20A – 400A |
| No Load Voltage | 70V |
| Rated Duty Cycle | 60% @ 400A |
| Pulse Frequency Range | 0.5 – 200 Hz |
| Pulse Width Control | 10% – 90% |
| Cooling System | Air-cooled |
| Insulation Class | H |
| Protection Class | P21 |
| Weight | Approx. 40 – 45 kg |
| Dimensions (L × W × H) | 600mm × 320mm × 500mm |
Hyunald Electric Weld – Trusted Manufacturer & Supplier
Hyunald Electric Weld is a renowned manufacturer and supplier of industrial welding machines in India. Known for quality, reliability, and innovation, our TIG 400P/DC ANALOG 9 POT WELDING MACHINE is built to meet the exacting standards of professional welders and fabrication units across diverse industries.
